PRODUCT INFORMATION

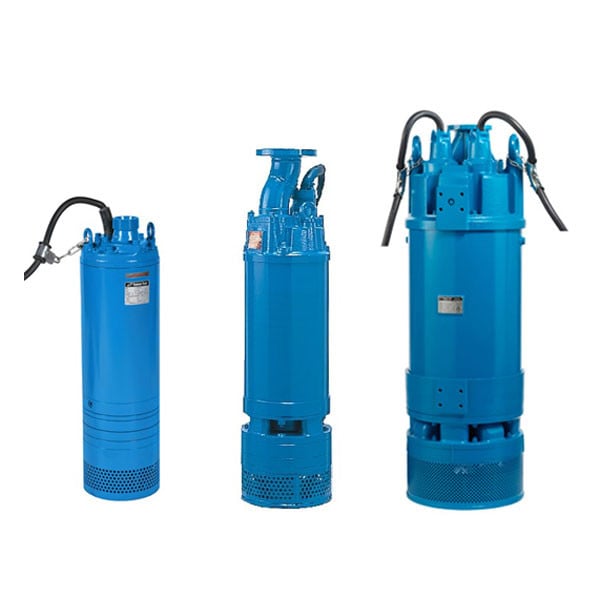

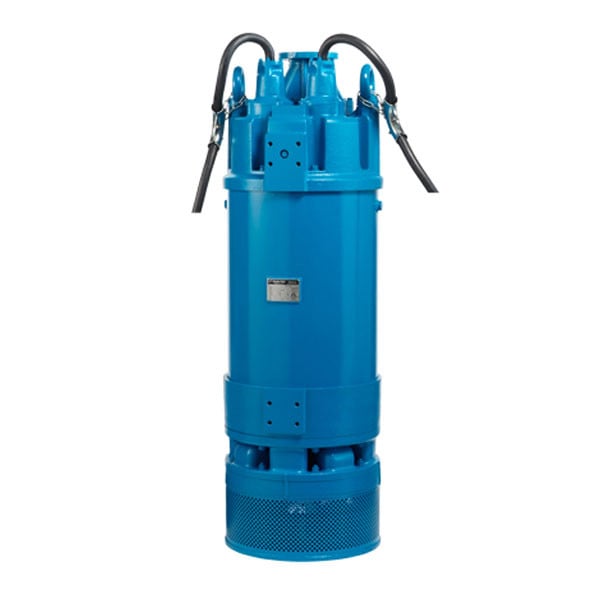

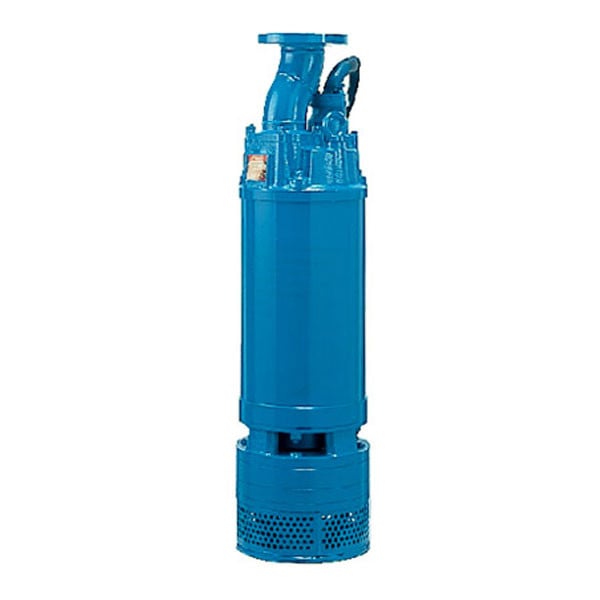

The LH-W-series is a three-phase cast iron extra high head drainage pump having dual impellers. Being the pump cylindrical and slim, it can be installed in a well casing for deep well dewatering. The center flange construction assures a stable installation even if it is fixed by the discharge pipe.*1 The top discharge, flow-thru design provides maximum motor cooling efficiency allowing continuous operation at low water levels and extended dry-run capability. The pump incorporates seal pressure relief ports that prevent the pumping pressure from applying to the shaft seal.*2
*1 excluding LH4110W
*2 excluding LH23.0W
SPECIFICATIONS
|
Discharge |
Model | Motor Output kW |
Starting Method |
Max. Head in Tandem |
Max. Head w/o Intermediate Connection Pipe (m) | Dimentions L x H |
Dry Weight (kg) |
Cable lenght (m) |
|---|---|---|---|---|---|---|---|---|

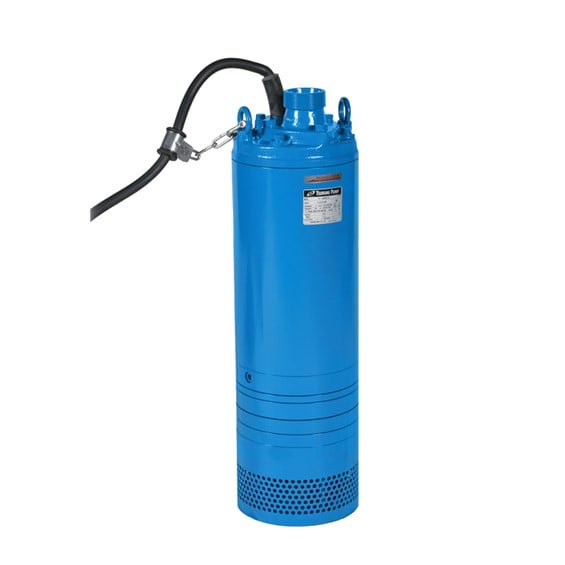

| 50 | LH23.0W | 3 | D.O.L. | 78 / 86 | 50 | 185 x 759 | 59 | 20 |
| 50 | LH25.5W | 5.5 | D.O.L.*1 | 130 | 97.5 | 185 x 759 | 96 | 20 |
| 80 | LH311W | 11 | D.O.L.*1 | 162 | 121.5 | 270 x 1043 | 125 | 20 |
| 80 | LH322W | 22 | D.O.L.*1 | 204 / 216 | 162 | 330 x 1255 | 365 | 20 |
| 100 | LH430W | 30 | Star-Delta | 246 / 254 | 190.5 | 365 x 1400 | 389 | 20 |
Please Note: Specification's are a guild only and may change without notice.
* 1 Star-Delta available upon request
* 2 Weights excluding cable
LITERATURE AND DRAWINGS
 |
Tsurumi LH-W Series Dual Impeller Submersible Pumps |
