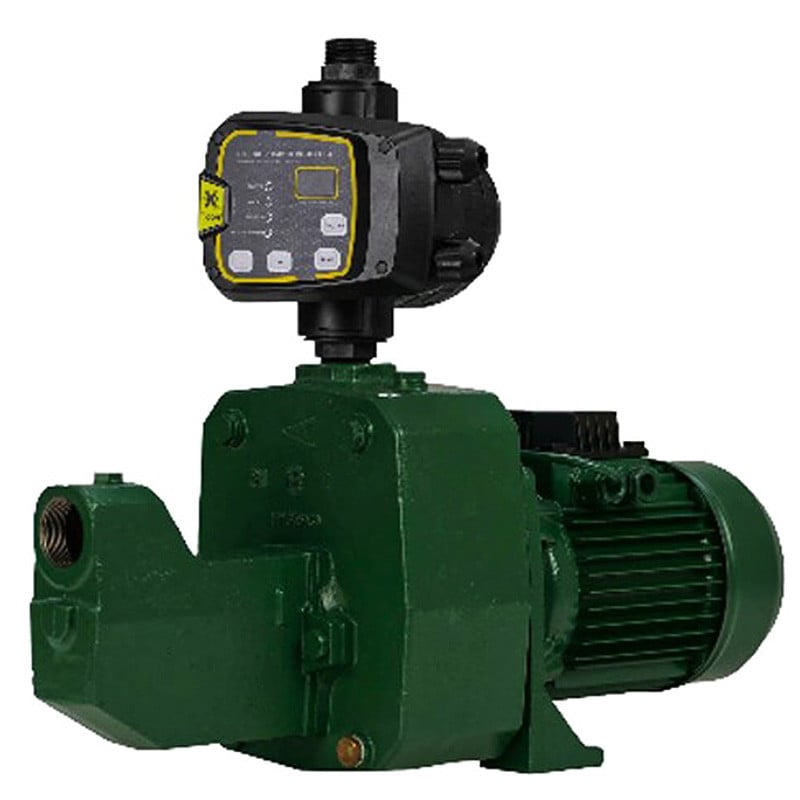

DAB iCON Powered Pressure System
Ideal for medium to large homes. Suitable for high density urban applications.
Controller with fully adjustable cut in pressure 0.5 to 6 bar.
FEATURES & BENEFITS
Constructional features of the pump
Pump: Cast iron pump body and motor support. Technopolymer impeller and diffuser.
Stainless steel adjustment ring. Carbon/ceramic mechanical seal.
Ejector: Cast iron body. Technopolymer A Venturi tube and brass nozzle.
The ejector is available in three models (E20 - E25 - E30) to be chosen according to performance requirements.
Constructional features of the motor
Asynchronous motor, closed and cooled with external ventilation.
Rotor mounted on oversized greased sealed-for-life ball bearings.
Built-in thermal and current overload protection and a capacitor permanently in circuit in the single-phase version.
For the protection of the three-phase motor, it is advisable to use a suitable overload protection complying with the regulations in force.
Manufactured according to CEI 61-69 standards (EN 60335-2-41).
Motor protection: IP 44
Terminal box protection: IP 55
Insulation class: F
Operating range: up to 4.3 m3/h.
- Liquid quality requirements: clean, free from solids or abrasive substances, not viscous, not aggressive, not crystallized, chemically neutral, close to the characteristics of water.
- Liquid temperature range: from 0°C to +35°C for domestic use (EN 60335-2-41)
from 0°C to +40°C for other uses
- Maximum ambient temperature: +40°C
- Maximum operating pressure: DP 82 - DP 102 6 bar (600 kPa), DP 151 - DP 251 8 bar (800 kPa)
- Installation: fixed in a horizontal position
- Special executions on request: other voltages and/or frequencies
Controller
This pump includes the Bianco iCON nXt PRO series of pump controller.
The nXt PRO Controller is designed and tested in Australia to ensure operation in the toughest of environments, combining innovative technology with robust proven architecture to guarantee constant supply of pressurised water when and where you need it the most.
Controller Features
- Digital display gives you a real time indication of system pressure
- Anti-cycle Protection
- Dry run protection with auto restart function that tests for water availability every 24hrs
- Anti-seize function if pump has not operated for last 24 hours
- Controller automatically restarts pump after a power failure
- Easy assembly and removal using push-n-connect fitting with U clip
- Complies to AS/NZ 4020 drinking water standard
- Over pressure protection turns pump off when 10 bar is reached
- Overload protection
Controller Modes
Two operational modes:
- Mode One - Adjustable cut in pressure setting
- Controller stops pump when flow drops.
- Mode Two - Adjustable cut in and cut out pressure.
- Shut down governed by pressure. Requires pressure tank.
TECHNICAL DATA
| Brand |
DAB Pumps |
| Product Type |
Pressure System |
| Suitable For |
Clean Water |
| Bar |
6.1 |
| Flow Range Category |
b. 100 - 199 L/min |
| Flow Rate (L/min) |
120 |
| Float |
No |
| Hp |
2.5 |
| kPa |
607 |
| Kilo Watts |
1.85 |
| Head Range Category | c. 60 - 99 m |
| Max Head (m) |
62 |
| Port Size Inlet | 1 1/4" BSPF inlet |
| Port Size Outlet |
1" BSPM outlet |
| Powered |
Electric |
| Taps |
12 |
| Warranty (months) | 24 |
| Volts |
240 |
| Watts |
1850 |
nXt PRO Controller Data
| Function |
ON/OFF + Config |
| Modes |
2 |
| Size |
2.2Kw |
| Rated Voltage |
220-240V AC |
| Max Amps | 15 |
| Rated Power |
2200w |
| Rating |
IP65 |
| Union Size |
1" |
| Start Pressure |
Adjustable |
| Stop Pressure |
Adjustable |
| Max Pressure |
10 bar (145PSI) |
| Max Liquid Temp | 40°C |
| Cable to Pump |
Plug and Play |
| Flylead for Pump |
When sold as control only |
| Power Cable |
10AMP |
| Communication | - |
| Accessories (Sold Separately) |
15 AMP Cable 1 ¼” Union Kit |
DRAWINGS
 |
 |
LITERATURE
 |
DAB 251nXt Cast Iron Jet Pump With nXt Pro Controller Brochure |
