PRODUCT INFORMATION

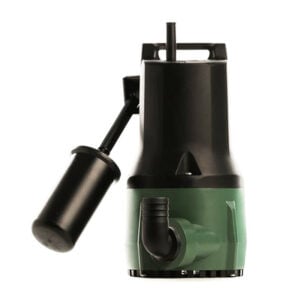

DAB VERTYNOVA400M Cellar Puddle Submersible Pump
Submersible Cellar/Puddle Pump
Specifically designed for use in narrow pits with dimensions down to 20cm x 20cm. Suitable to pump clear water containing particles with maximum diameter 5mm.
FEATURES & BENEFITS
- Submersible pumps specifically designed for use in narrow pits with dimensions down to 20cm x 20cm.
- Suitable to pump clear water containing particles with maximum diameter up to 5mm.
- Pump with built-in float switch, 10m power cable. Anti-corrosive and rust-proof materials. Low suction capability: 2-3mm (manual mode).
- A pump priming limit:10-15mm (manual mode).
- Lever for manual or automatic operation. Easy access through sliding cover to float switch for cleaning.
- Excellent cooling of the motor that enables the pump to operate even when it is partially submersible.
- Supplied with power cable with plug, nonreturn valve, and 4-step fitting.
TECHNICAL DATA
| Brand | DAB Pumps |
| Bar |
0.9 Bar |
| Flow Range Category |
b. 100 - 199 L/min |
| Flow Rate (L/min) |
195 L/min |
| Head Range Category |
a. 0 - 39 m |
| Max Head (m) |
9 m |
| Volts |
240 V |
| Watts |
400 W |
