PRODUCT INFORMATION

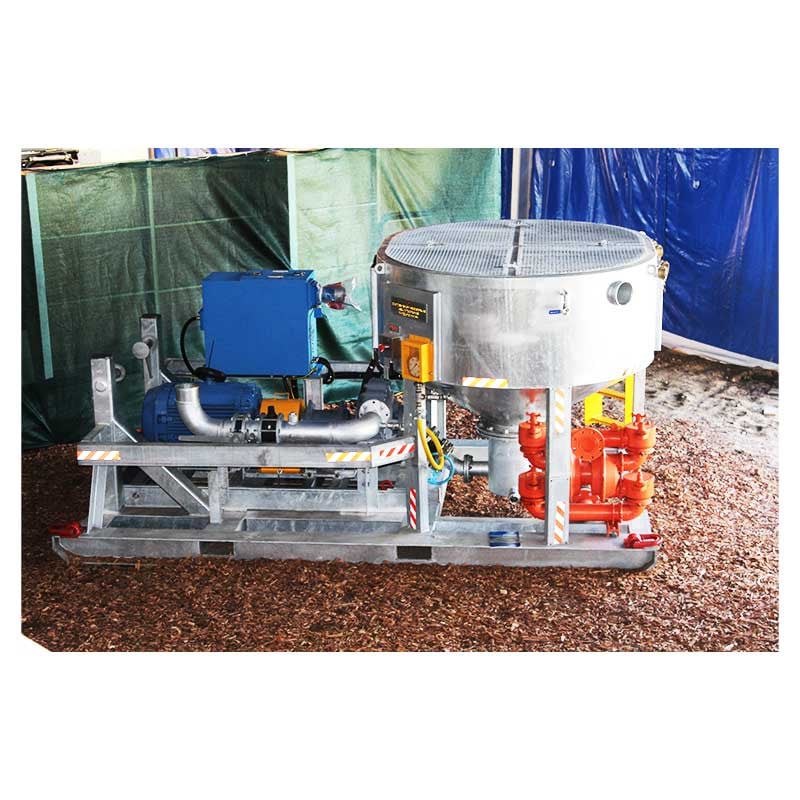

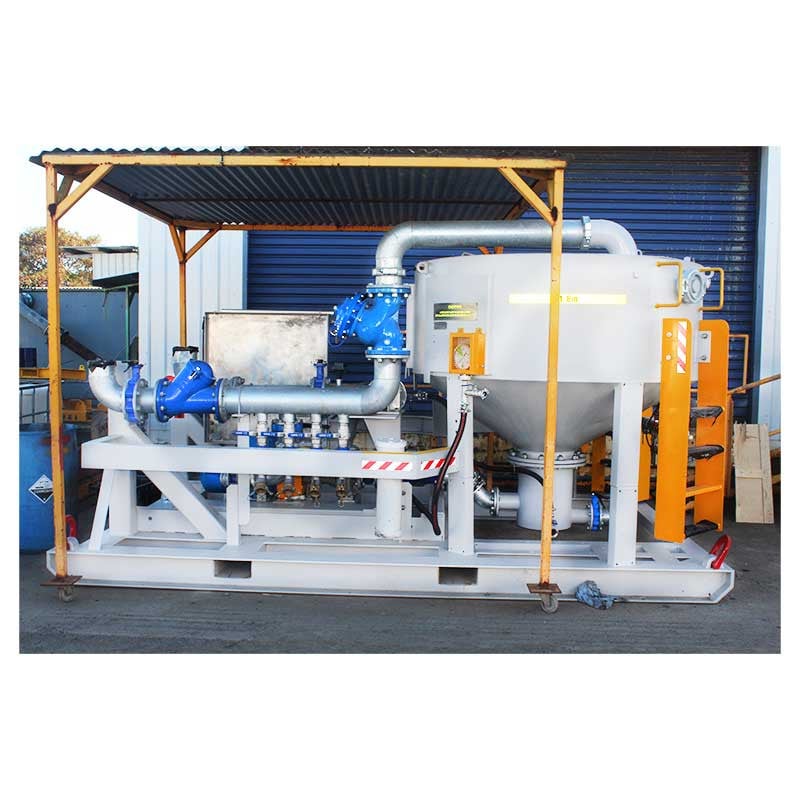

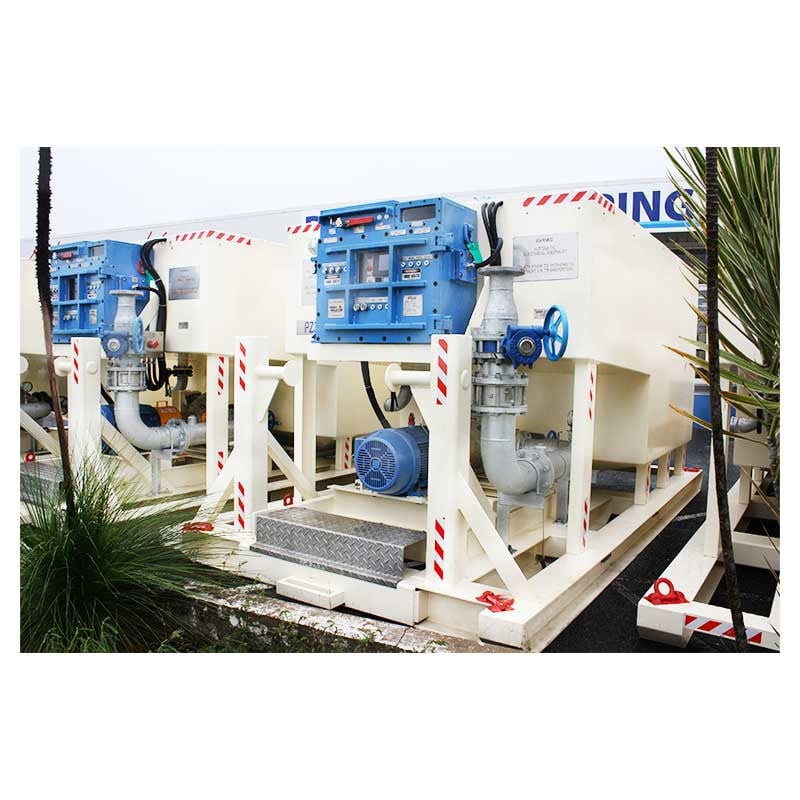

Portable Fish Tanks are used in underground mines as part of the water management process. Mine water is collected
from sumps and wet areas by pumps and delivered to the fish tank.
Standard capacity options of 2,000L, 4,000L, 6,000L, 10,000L and 14,000 litre tanks are designed to minimise
maintenance. The bottom shape of the fish tank allows a self-cleaning action that dramatically reduces the retention of
solids.
Flameproof or IP Rated models are available with pump and motor configurations selected based on the application
requirements.
FEATURES AVAILABLE
- Area lighting
- Hinged inlet screen for easy debris removal
- Gas monitoring
- AODD backup pumps
- Inlet flow control
- Removal POD for easy maintenance
KEY COMPONENTS
- QDS lift attachment
- Corrosion protection options of hot dip
galvanising or painting - Forklift slots
- RPEQ certification
- Removable pump/motor cassette
- Flameproof or IP starter
- Floats for controlling water level
CAPACITY | HEAD |
40 L/sec | 130m |
25 L/sec | 150m |
70 L/sec | 105m |
50 L/sec | 198m |
20 L/sec | 60m |
LITERATURE AND DRAWINGS
Underground Dewatering Fish Tanks |
