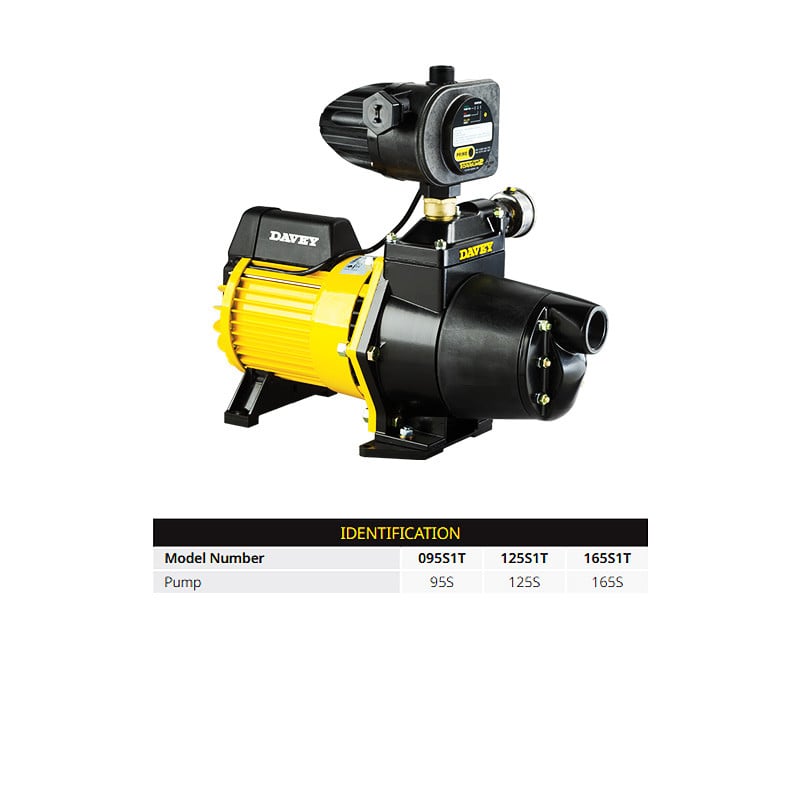

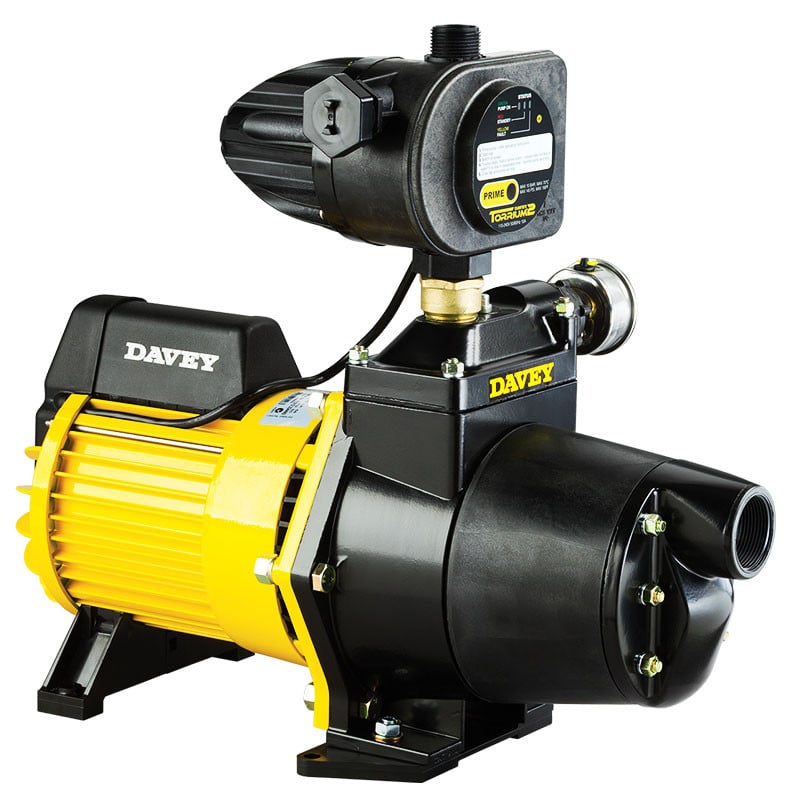

PRODUCT INFORMATION
SHALLOW AND DEEP WELL JET PUMPS
Suitable for suction depths down to 50m, the shallow and deep well jet pumps with pressure switch are a rugged pump suitable for supplying high-pressure water for garden sprinklers, stock watering and washdown. Other popular applications include supplying water from dams, creeks, rivers and bores, or tank filling.
FEATURES & BENEFITS
The combination of high pressures supplied by the jet-assisted shallow well pump and constant flow with loss of prime protection provided by the Torrium2 controller enables consistent and trouble-free operation whilst protecting the pump from damage.
The Torrium2 controller is supplied connected electrically to the shallow well pump motor for:
- Easy non-tradesman installation and assembly
- Positive safety under varied weather conditions
All parts of the system that are in contact with the water are manufactured from safe, corrosion resistant materials for:
- Consumer confidence that their water supply will be as good coming out as it was going into the system
- Ability to use the shallow well pressure system on a variety of water qualities
Compliance with the strict requirements of ISO 9001.2000 quality standards ensures consistency of quality of the system.
PUMP
- 1 stage (single impeller)
- Open vane impeller
- Stainless steel impeller wear plate
- Inbuilt check valve
- Mechanical shaft seal
- Oring casing seal
MOTOR
- Davey manufactured
- TEFC with IP55 enclosure
- Class F insulation
- Double contact C3-HTG sealed bearings
- Inbuilt thermal overload protection
- Plastic feet on motor shell
For more detailed information on the Torrium2 controller, please refer to the Torrium2 datasheet on the Davey website
TECHNICAL DATA
OPERATING LIMITS
Type | 095S | 125S | 165S |
Maximum capacity (@260kPa, nil suction) lpm | 95 | 126 | 126 |
Maximum suction head (m | 7.5 | 7.5 | 7.5 |
Maximum water temperature | 50°C | 50°C | 50°C |
Minimum water temperature | 1°C | 1°C | 1°C |
Inlet size | 1 1/2" BSP(F) | 1 1/2" BSP(F) | 1 1/2" BSP(F) |
Outlet size | 1 1/4" BSP(F) | 1 1/4" BSP(F) | 1 1/4" BSP(F) |
ELECTRICAL DATA
Shallow Well Pump – Type | 095S | 125S | 165S |
Supply voltage (1ø) | 220-250 | 220-250 | 220-250 |
Output power (kW) | 1.1 | 1.4 | 1.8 |
Maximum rated current @ 240V (amps) | 7.2 | 8.5 | 10 |
Locked rotor current @ 240V (amps) | 21 | 25 | 39 |
Insulation class | F | F | F |
IP rating | IP56 | IP56 | IP56 |
Starting (1ø) | P.S.C. | P.S.C. | P.S.C. |
TORRIUM 2
Model | TT70 |
Voltage | 110-240V±10% |
Phase | Single |
Hz | 50 / 60 |
IP rating | IP56 |
Maximum load current | 10A |
Maximum motor size @ 240V input | 1.8kW |
Surge protection | Varistor |
MATERIALS OF CONSTRUCTION
PART | MATERIAL |
Suction cover | Aluminium-Rilsan® lined |
Pump body | Aluminium-Rilsan® lined |
Discharge port | Aluminium-Rilsan® lined |
Diffuser | Glass filled Noryl |
Backplate | Glass filled Nory |
Jet/Venturi housing | Glass filled Noryl |
Impeller | Glass filled polycarbonate |
Jet | Acetyl |
Venturi | Acetyl |
Seal ring (stationary) | Ceramic |
Seal ring (rotating) | Carbon |
Orings | Nitrile rubber |
Priming plug | Nylon |
Shaft sleeve | 316 stainless steel |
Motor shell | Aluminium |
Motor shell finish | Polyester powder coat |
Capacitor cover | Polypropylene |
Terminal box cover | Polypropylene |
Mounting feet | Xenoy |

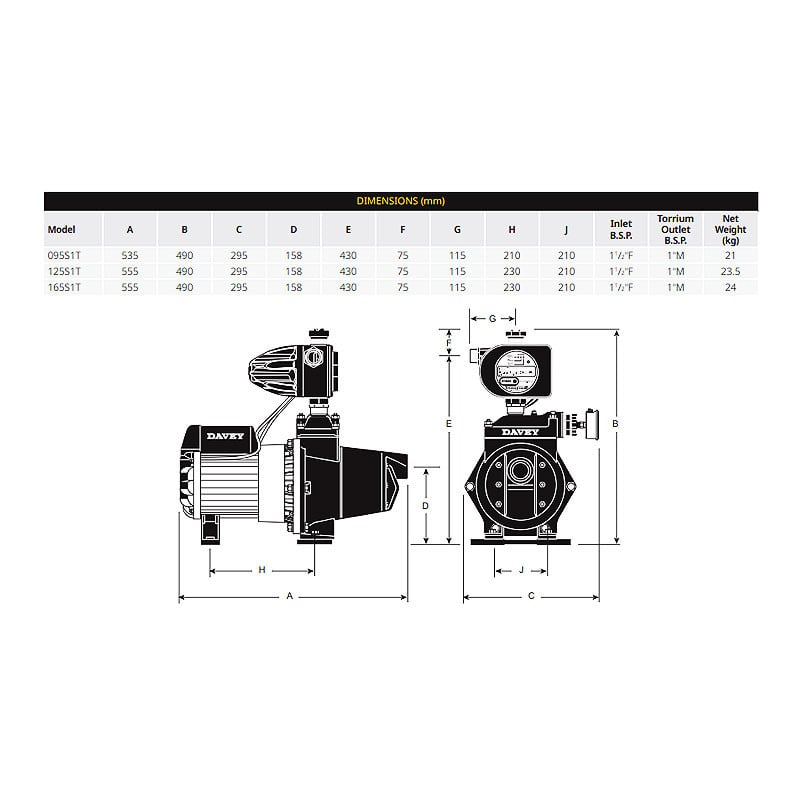

DRAWINGS
LITERATURE
Davey 095S1T Shallow Well Torrium2 Jet Pump Brochure |
