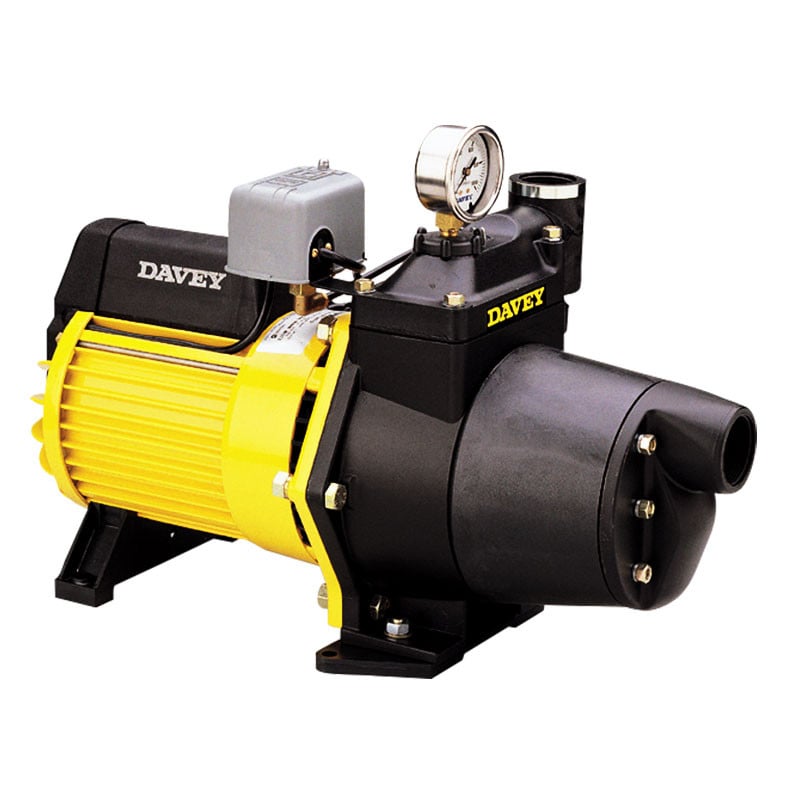

Shallow Well Jet Pumps
Suitable for suction depths down to 50m, the shallow and deep well jet pumps with pressure switch are a rugged pump suitable for supplying high pressure water for garden sprinklers, stock watering and washdown. Other popular applications include supplying water from dams, creeks, rivers and bores, or tank filling.
FEATURES & BENEFITS
WHY CHOOSE THE Davey Shallow Well Jet Pump?
- Davey LTEFC motor providing:
- IP56 rating for long-term protection against vermin, dust and water
- Designed for both high ambient temperatures and extremes in supply voltage making them ideal for remote areas
- Pump unit features the highest corrosion resistance with outstanding pressure capacity due to:
- unique composite casing design with high-strength aluminium outer casing and full internal casing made from precision moulded Rilsan.
- mounting feet in high impact resistant corrosion-proof Xenoy.
- Versatile pump - convertible to match required duty
- Colour-coded jets and venturis for easy identification
- Easily converted to automatic operation
- 165S available with 3 phase motor
- Quick and easy installation
- Low maintenance
- Easy to service if required
- Oring seal hand-tightened priming plug for easy operation
PUMP
- 1 Stage (Single Impeller)
- Jet assisted
- Marine grade aluminium pump body with Rilsan® lining
- Interchangeable jet/venturi kits to match pump performance to required duty
- Pressure switch fitted
- Pressure gauge supplied
MOTOR
- Davey manufactured.
- 2 pole, 2900rpm, 50Hz
- Class F insulation, IP56.
- Permanently split capacitor design for single phase motors.
- P2 metal jacket ‘fail safe’ capacitors.
- Double contact seal C3, high temperature greased bearings.
- Inbuilt thermal overload protection with automatic reset in all 1ø models.
TECHNICAL DATA
OPERATING LIMITS
Type | 095S | 125S | 165S |
Maximum capacity (@260kPa, nil suction) lpm | 95 | 126 | 126 |
Maximum suction head (m | 7.5 | 7.5 | 7.5 |
Maximum water temperature | 50°C | 50°C | 50°C |
Minimum water temperature | 1°C | 1°C | 1°C |
Inlet size | 1 1/2" BSP(F) | 1 1/2" BSP(F) | 1 1/2" BSP(F) |
Outlet size | 1 1/4" BSP(F) | 1 1/4" BSP(F) | 1 1/4" BSP(F) |
ELECTRICAL DATA
Shallow Well Pump – Type | 095S | 125S | 165S |
Supply voltage (1ø) | 220-250 | 220-250 | 220-250 |
Supply voltage (3ø) | N/A | N/A | 380-450 |
Output power (kW) | 1.1 | 1.4 | 1.8 |
Maximum rated current @ 240V (amps) | 7.2 | 8.5 | 10/4.2 |
Locked rotor current @ 240V (amps) | 21 | 25 | 39/24 |
Insulation class | F | F | F |
IP rating | IP56 | IP56 | IP56 |
Starting (1ø) | P.S.C. | P.S.C. | P.S.C. |
MATERIALS OF CONSTRUCTION
PART | MATERIAL |
Suction cover | Aluminium-Rilsan® lined |
Pump body | Aluminium-Rilsan® lined |
Discharge port | Aluminium-Rilsan® lined |
Diffuser | Glass filled Noryl |
Backplate | Glass filled Nory |
Jet/Venturi housing | Glass filled Noryl |
Impeller | Glass filled polycarbonate |
Jet | Acetyl |
Venturi | Acetyl |
Seal ring (stationary) | Ceramic |
Seal ring (rotating) | Carbon |
Orings | Nitrile rubber |
Priming plug | Nylon |
Shaft sleeve | 316 stainless steel |
Motor shell | Aluminium |
Motor shell finish | Polyester powder coat |
Capacitor cover | Polypropylene |
Terminal box cover | Polypropylene |
Mounting feet | Xenoy |
INSTALLATION & PRIMING
- Installations with suction lift require a good quality foot valve to avoid loss of prime.
- To prime, fill pump body and suction line through priming plug hole and replace plug.Note:
Note: For complete details consult the installation and operating instructions
DRAWINGS
LITERATURE
Davey 125S1 Shallow Well Jet Pump Brochure |
