PRODUCT INFORMATION

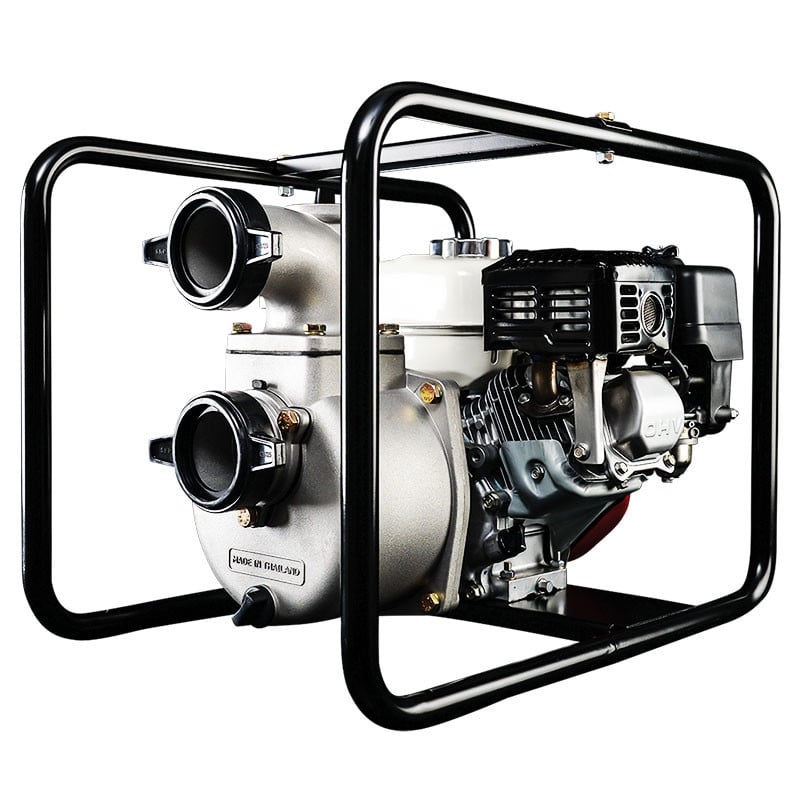

FLOODFIGHTER FLOOD PUMP AND WATER DRAINAGE SYSTEM
When you're experiencing flooding, you need to move that water fast.
The Davey Floodfighter is the product you need - a flood pump designed for moving large volumes of water with a flow rate of up to 1,000 lpm.
A rugged, economical model with an open cast iron impeller allows you to use this product as a flood water drainage system, as well as for septic tank pump out, filling or draining a large tank, irrigation, water transfer o,r dewatering.
Application
- Septic tank pump-out
- Tank filling
- Irrigation
- Water transfer and dewatering
FEATURES & BENEFITS
Available with either a Honda GX200 petrol engine, or a Yanmar L70 diesel engine, both options are available with recoil starters, or with electric start with recoil start backup. Low oil protection is built-in for peace of mind, and a two-stage air cleaner with a cast icon-sleeved cylinder bore ensures a long engine life.
Models in the range:
- G8016 - Petrol, Honda GX200 engine
- G8016E - Petrol, Honda GX200 electric start engine
Pump
- Corrosion-resistant marine grade aluminium casing, suction and discharge port for longer life
- Heavy duty cast iron open impeller and diffuser to extend pump life when pumping dirty water with some solids content
- Nitrile rubber seal and casing o-rings for improved reliability in varying water quality
- Mechanical shaft seal for long life
- Able to self-prime from 6m*, for improved versatility
- Includes powdercoated steel roll frame with anti vibration mounting for easy transport
Engine
- High quality Honda GX200 petrol engine, which has European Community and USA EPA and CARB environmental standards compliance
- Two stage air cleaner and cast iron sleeved cylinder bore for long engine life
- Low oil protection for operator peace of mind
Starting Options
- Available with recoil starters or with electric start with recoil start back-up
TECHNICAL DATA
MATERIALS OF CONSTRUCTION
| PART | MATERIAL |
| Suction cover | Aluminium |
| Diffuser | Cast iron |
| Impeller | Cast iron |
| Yoke & casing | Aluminium |
| Discharge | Aluminium |
| Casing bolts | Zinc plated stee |
| Yoke bolts | Stainless steel |
| Flap valve | Nitrile rubber |
| Seal ring | Nitrile rubber |
| Casing o-ring | Nitrile rubber |
| Mechanical seal | Carbon ceramic |
ENGINE SPECIFICATIONS
| Engine Brand | Honda |
| Engine Model | GX200 |
| Engine Type | 3600 |
| Displacement (cc) | 196 |
| Fuel Tank (litres) | 3.1 |
| Oil Capacity (litres) | 0.6 |
| Compression Ratio | 8.5:1 |
| Air Filter Type | Dual-Foam / Paper |
| Spark Arrestor | YES |
| Aprrox. fuel consumtion @ full load @ 3600rpm | 1.7 l/hr |
| dB(A) @ 7m @ 3600rpm @ full load | 79 |

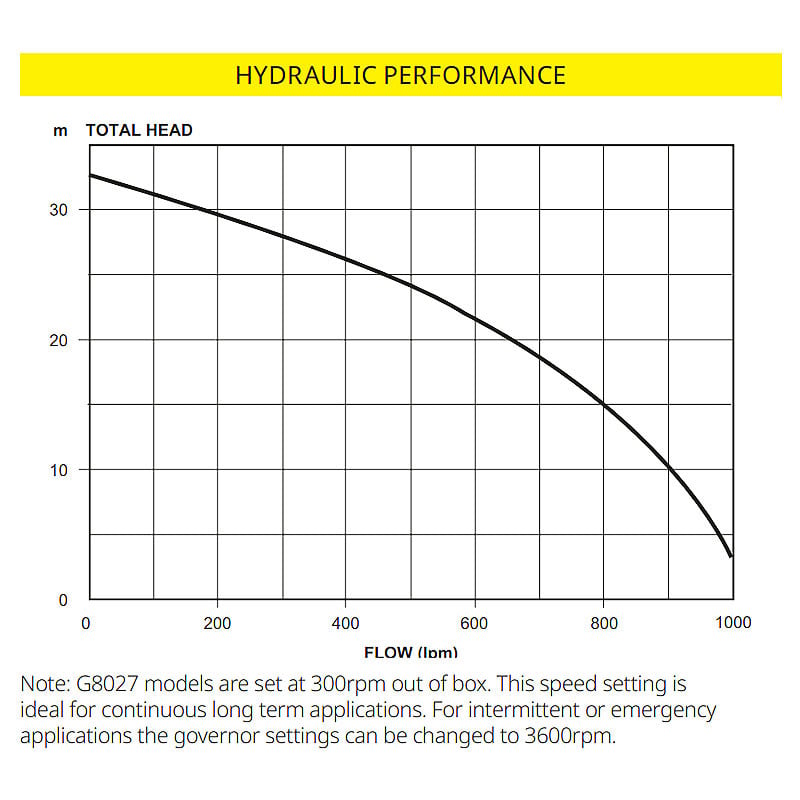

OPERATING LIMITS
| Max. flow to | 1000 lpm |
| Max. Total Head | 32m |
| Max. Suction Lift | 7m |
| Max. Water Temperature | 50 ̊C |
| Min. Water Temperature | 1 ̊C |
| Min. Suction Pipe Size | 3” |
| Inlet size | 3" BSP(M) |
| Outlet size | 3" BSP(M) |

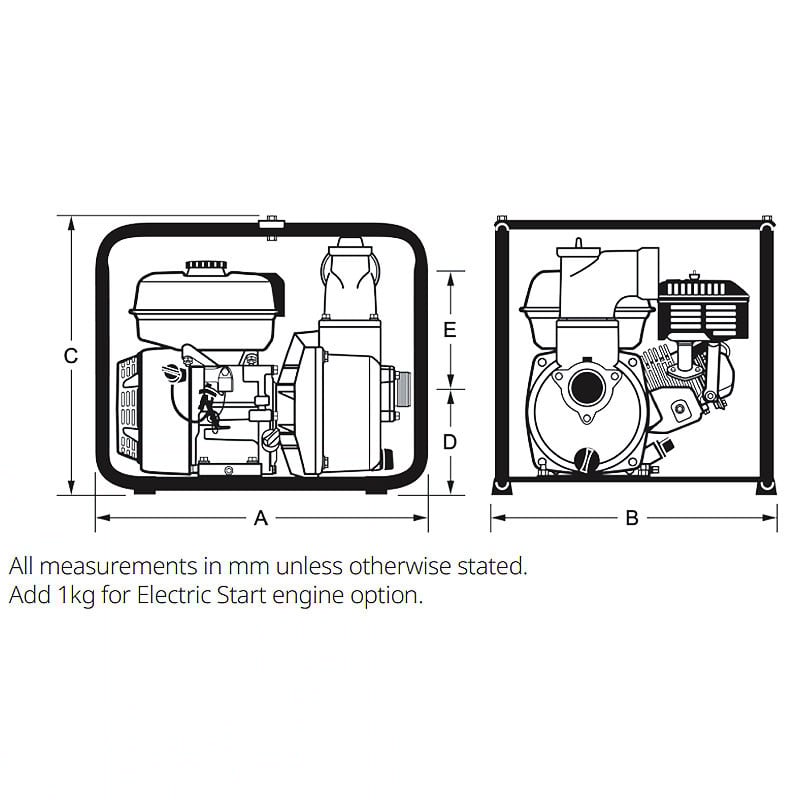

DRAWINGS
 |
 |
LITERATURE
 |
Davey G8016 Flood fighter Flood Pump Brochure |
