PRODUCT INFORMATION

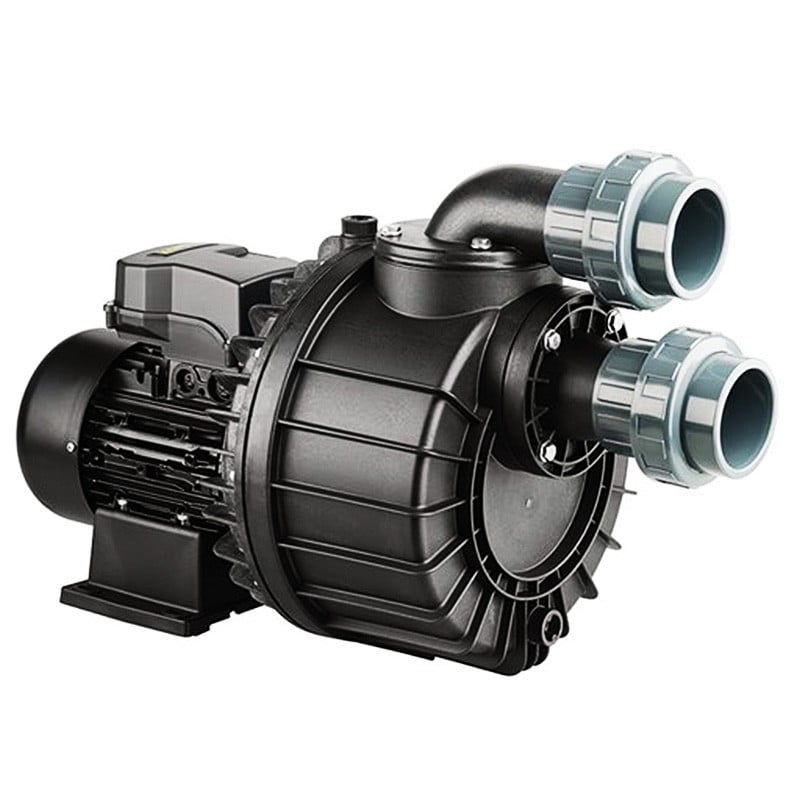

Turbo Pump & Swim Jet System
Has the power to turn your swimming pool into a practical sport and leisure zone, with a counter-current swim system.
APPLICATION
Ideal for swimming pool applications such as:
- Lap pools
- Concrete and tile pools
- Fibreglass pools
- Swim Jet installation
- Sport or rehabilitation installations
FEATURES & BENEFITS
WHY CHOOSE THE
Davey Hurricane Turbo Swim Jet System?
- Maximises the value and enjoyment of your pool
- High powered pump provides a high flow jet of water to swim against
- Swim jet controlled by air switch on swim jet. No need to leave the pool to turn on or off
- Turbo swim jet outlet provides 3 settings for jet flow control
- Simple installation of swim jet – only one hole required for both suction and return points
- Designed for dependability and long life using corrosion-resistant, UV stabilised materials
- Self priming up to 4 metres for easy operation and installation
- Stainless steel pump shaft suited for salt chlorinated pools
- 65mm barrel unions for easy installation to large OD pipe
- 65-80mm PVC adaptors also available for easy connection to DN80 pipe – M3689
- 2 Year guarantee
TECHNICAL DATA
ELECTRICAL DATA
| Model |
Hurricane 300 |
| Voltage (V) | 220-250 |
| Supply Frequency/Phase | 50Hz / 1 |
| Run Current (A) | 12.5 |
| Motor Input Power (W) | 3000 |
| Motor Output Power (W) | 2300 |
| RPM | 2900 |
| Enclosure Class (IP) | 55 |
| Insulation Class | F |
| Approval No. | W2442 |
OPERATING LIMITS
| Max water temperature | 35ºC |
| Max ambient temperature | 50ºC |

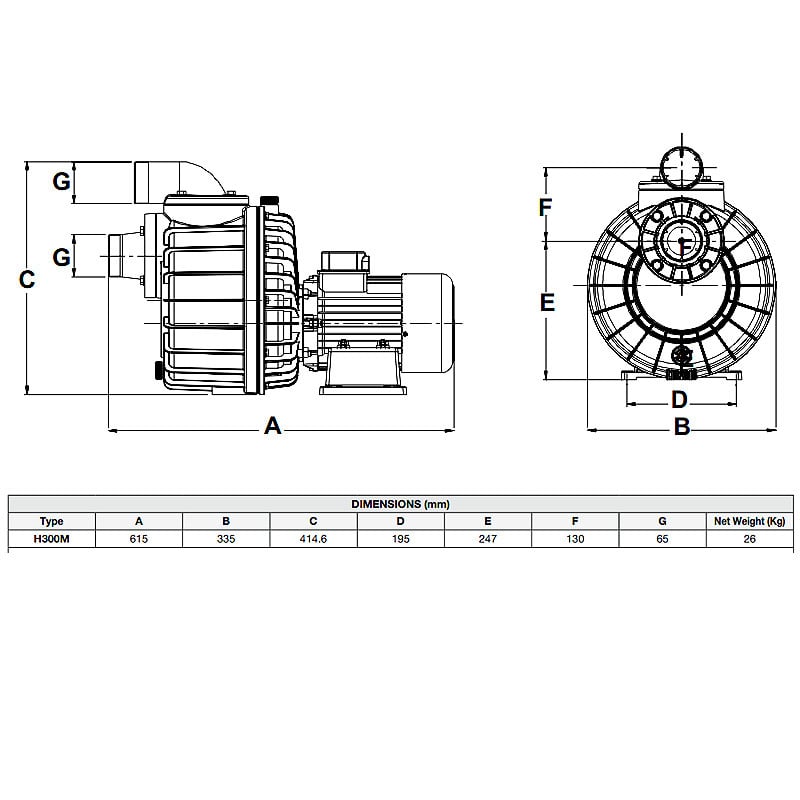

DRAWINGS
 |
 |
LITERATURE
 |
Davey Hurrican H300M Turbo Pump & Swim Jet Brochure |
